WAL Streaming v0.0.12

A standout feature of Klio is its native, cloud-first implementation of WAL streaming for PostgreSQL. This architecture enables:

• Partial WAL segment streaming, ensuring real-time data transfer
• Built-in compression and encryption using user-provided keys
• Controlled replication slot advancement, protecting against WAL loss
• Optional synchronous replication, offering zero RPO when enabled

Architecture

WAL streaming in Klio is built around two components: a client and a server.

• The client, invoked using the klio send-wal command, typically runs alongside PostgreSQL but does not have to.
• The server, started with the klio server start-wal command, runs as a dedicated process on the Klio server.

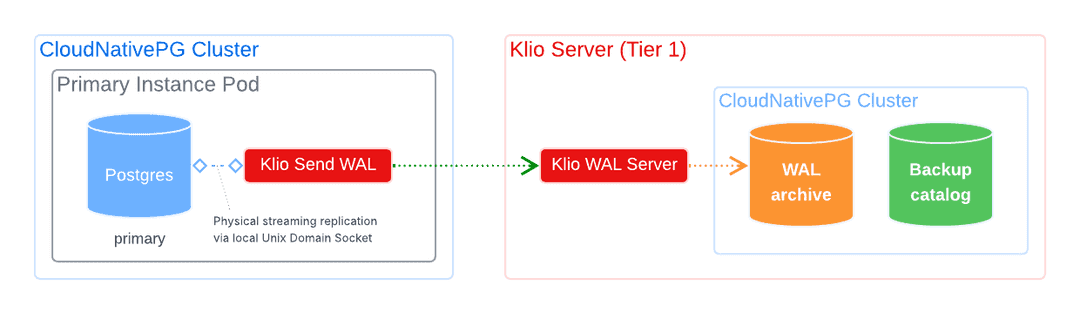

In Kubernetes environments, as illustrated in the diagram above, Klio streams WAL records directly from the PostgreSQL primary over a local Unix domain socket. The WAL streamer runs as a lightweight sidecar container within the same pod as the primary instance and is managed by the CNPG-I–compliant plugin. It continuously pushes data to a remote Klio WAL server (Tier 1), which handles partial WAL file synchronization and archives completed segments into the central WAL archive for the PostgreSQL cluster.

Moving Beyond archive_command

Klio replaces the traditional PostgreSQL archive_command method for WAL handling in CloudNativePG clusters, providing improved reliability, efficiency, security, and observability.

PostgreSQL’s archive_command is a shell command executed when a WAL segment is complete—either because the segment reached its size limit (typically 16MB) or the archive_timeout elapsed (5 minutes by default in CloudNativePG).

The streaming model provided by Klio offers several key advantages over this approach:

• Near-zero RPO: WAL changes are streamed incrementally in near real-time, reducing the worst-case recovery point objective (RPO) from 5 minutes to near-zero, or even zero in synchronous mode.

• Improved efficiency and scalability: A single, continuously running WAL streamer process replaces the need to spawn a new process for each WAL segment, resulting in lower CPU and I/O usage and better scalability during periods of high WAL volume.

• Enhanced security: WAL data is encrypted end-to-end, both in transit and at rest, providing protection not available with the traditional archive_command.

• Comprehensive observability: Native metrics and structured logging provide full visibility into WAL streaming operations, simplifying monitoring, anomaly detection, and troubleshooting compared to the opaque nature of archive_command.

Monitoring Klio WAL Streamer in PostgreSQL

The Klio WAL streamer is a PostgreSQL streaming replication client and, as such, can be monitored using the standard pg_stat_replication system view in the PostgreSQL catalog.

The WAL streamer identifies itself with application_name set to klio.

To verify whether any Klio WAL streamer is connected to an instance (in Kubernetes deployments, this will always be the primary), run the following query:

SELECT * FROM pg_stat_replication WHERE application_name = 'klio';

An example output might look like this:

The following excerpt is an a example:

-[ RECORD 1 ]----+------------------------------
pid              | 1070
usesysid         | 10
usename          | postgres
application_name | klio
client_addr      |
client_hostname  |
client_port      | -1
backend_start    | 2025-08-07 01:14:39.619662+00
backend_xmin     |
state            | streaming
sent_lsn         | 2/C765A000
write_lsn        | 2/C75FA000
flush_lsn        | 2/C741A000
replay_lsn       | 2/C741A000
write_lag        | 00:00:00.919907
flush_lag        | 00:00:00.923556
replay_lag       | 00:00:00.923556
sync_priority    | 0
sync_state       | async
reply_time       | 2025-08-07 01:54:44.756306+00

As you can see, Klio provides relevant feedback to PostgreSQL. Here is a brief explanation of the key fields:

• state: The replication connection status (streaming indicates active streaming).
• sent_lsn, write_lsn, flush_lsn, replay_lsn: Positions in the WAL indicating how far data has been sent, written, flushed, and replayed on the Klio server (replayed and flushed are always identical).
• write_lag, flush_lag, replay_lag: Delays between WAL positions indicating replication latency.
• sync_state: The synchronization state of this standby (e.g., async, sync, potential, quorum).
